BORING SYSTEM 21 PRESTIGE
For horizontal and vertical drilling into wood-based panels and solid wood, for the furniture manufacturing.
– Small footprint:1 sqm
– Two times faster than a manual boring machine
More than 20.000 machines manufactured, over thirty years’ experience. 100% made-in-Italy machines abiding by the highest quality standards as a result of the “Lean” manufacturing process, also known as “Toyota System”.
TECHNICAL FEATURES MODEL
Quick-change spindles
32 mm interaxis
Pneumatig head rotation from 0° to 90°
Well-dimensioned working table made of steel
Boring-height adjustment on numeric counters
Ready to be connected to a dust-collector
Manufactured according to EC standards
STANDARD EQUIPMENT
N.1 – 2HP Motor
N.2 patented safety hold-down clamps
N.5 quick-change chucks
N.2, 1500 mm long, aluminium fences, with 2 ref. stops
N.2 removable side-fences on working table, adjustable on high-precision numeric counters
N.2 fixed ref. stops at 37 mm for hinges
Boring-height adjustment on numeric counters
Rear fence having 300 mm max. stroke
Package:stackable carton box
Ready to be connected to a dust- collector
Manufactured according to EC standards
MORE INFORMATION
FAST HORIZONTAL DRILLING
Thanks to the 640 mm interaxis and the large working table, You can process 2 panels having 316 mm width at the same time.

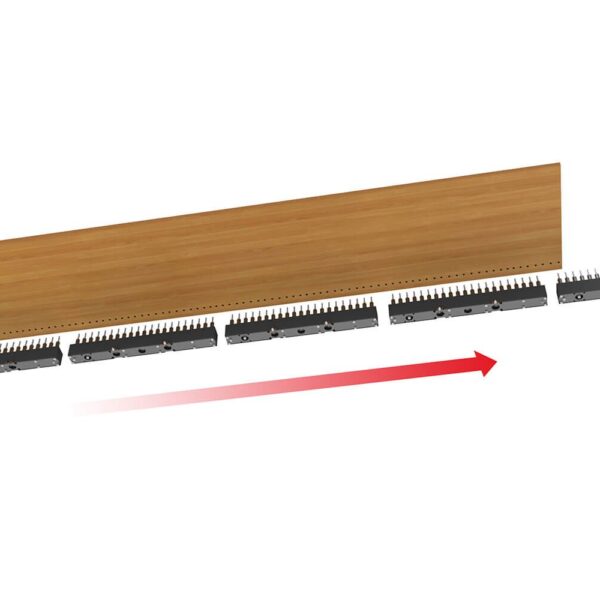

FAST VERTICAL DRILLING
You can process 3000 mm – long sides in 5 working cycles.
PERFECT PANEL JOINTS
The ref. side fences, adjustable along a metric bar, with magnify glass and nonius , always represent a precise reference point for the operator and guarantee the perfect parallelism of the drilling operations.

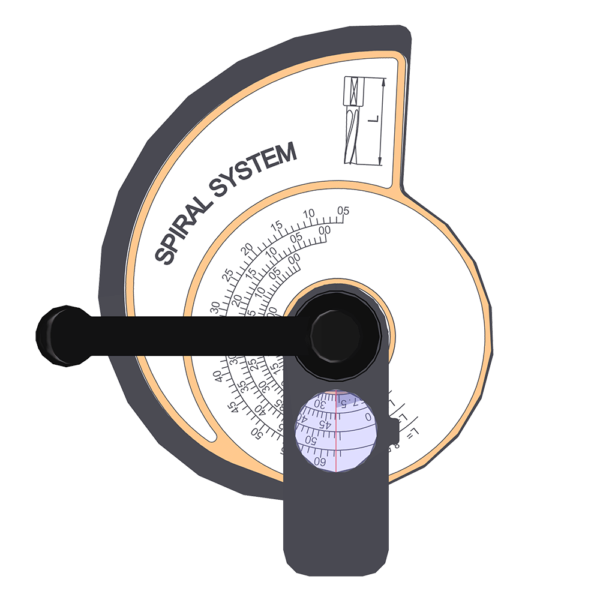

QUICK SET-UP
Adjusting the boring depth is extremely easy with the “Spyral System” device and the 10 mm automatic reset for vertical drilling.

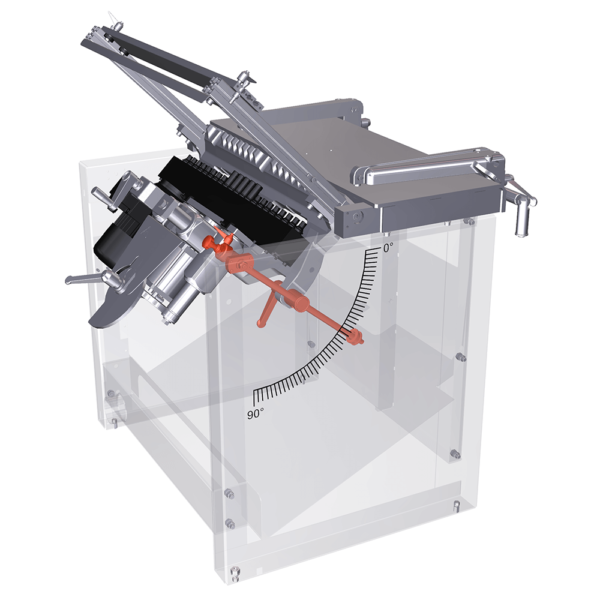

VERSATILITY
It drills at any angle between 0° and 90°.
SAFE PANEL HOLD-DOWN
The quick-positioning, safety, hold-down clamping units ensure the greatest stability and steadiness of the working piece during the working cycle and the highest accuracy of the drilling process.
TIME
Two times faster than a bench top boring machine.

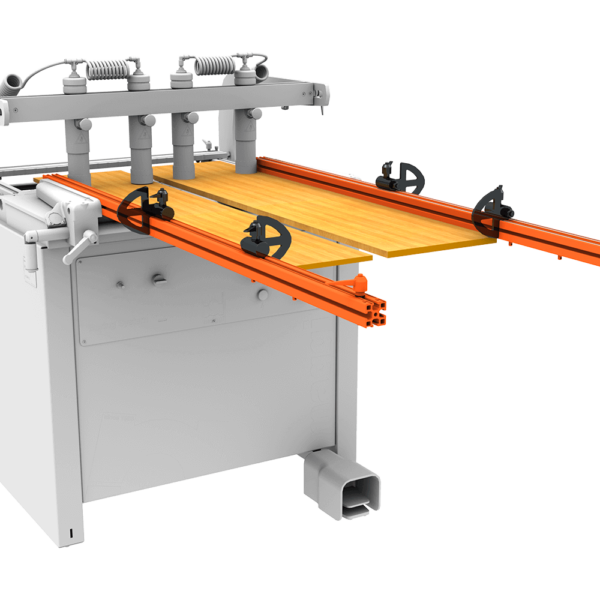

QUICK AND ACCURATE PANEL POSITIONING
Thanks to the two aluminium fences 1500x 80 mm with 4 reference stops, (two are included, two are options).

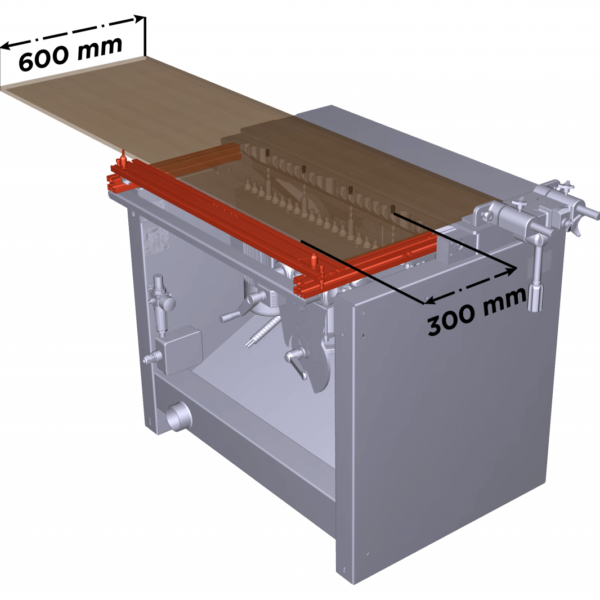

REAR FENCE
The rear fence, 300 mm stroke, allows to drill holes right in the middle of wardrobe side-panels, without using the long fence.
FIXED STOP FOR HINGES
The 37 mm fixed ref. stop is extremely useful to drill fixing holes for the hinges on side panels.

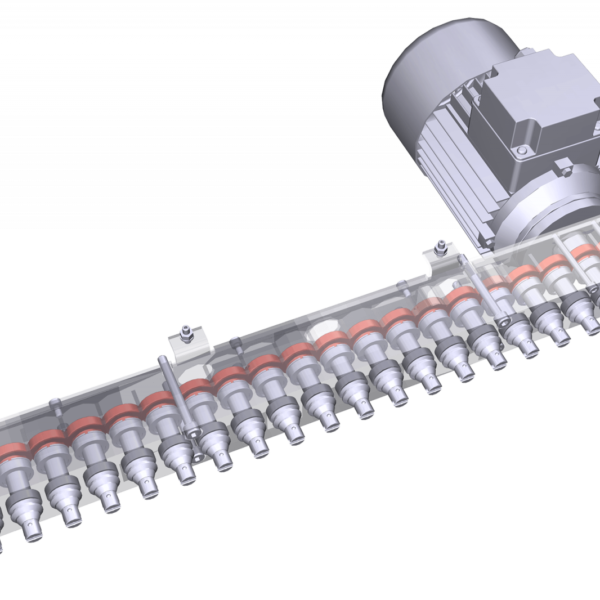

SOLID STRUCTURE
Made of steel, built to last, eco-friendly, rust-resistant powder coating. Boring head is made of aluminium, while internal gears are made of rectified steel.
QUICK AND ACCURATE PANEL POSITIONING
Thanks to the two aluminium fences 1500x 80 mm with 4 reference stops, (two are included, two are options).

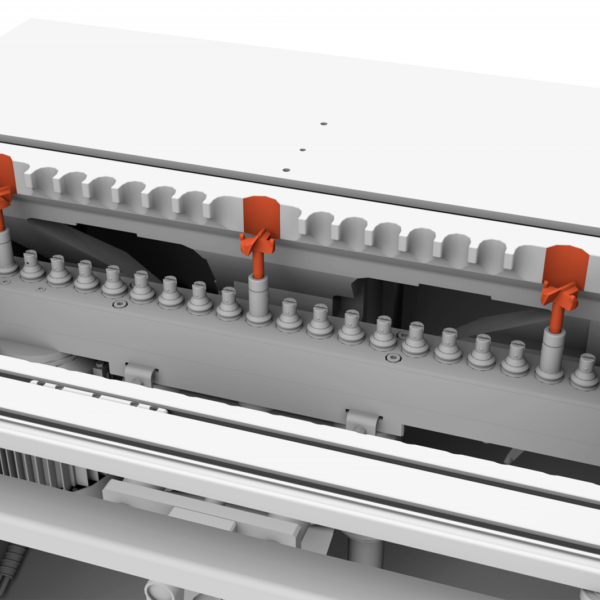

SPECIAL DESIGN TO WORK WITH LARGE-DIAMETER DRILL-BITS
The comb has been designed so as to have 3 fixed positions where You can use cutter-drill bits of large diameter, without any further adjustment of the boring head.
DATA SHEET
| Spindles | N. 21 |
|---|---|
| Left and right spindles | N. 10 sx – N. 11 dx |
| Spindle interaxis | 32 mm |
| Total interaxis | 640 mm |
| Max. tool diameter | 40 mm |
| Max. boring depth | 65 mm |
| Max boring height | 55 mm |
| Height of working table | 860 mm |
| Dimensions of the working table | 885 x 349,5 mm |
| Max. panel thickness (optional*) | 60 mm (130 mm *) |
| Max. panel dimensions | 900 x 3000 |
| Motor | HP 2 / KW 1,5 – RPM 2800 |
| Standard pneumatic pressure | BAR 6/8 |
| Air consumption per working cycle | 10 NL |
| Dust collection hood diameter | 80 mm |
| Overall dimensions – net weight: | 1015 x 990 x 1270 mm |
| Package dimensions (machine) | 1115 x 950 x 1050 mm |
| Rod packaging size | 1500 x 120 x 60 mm |
| Gross weight | 290 Kg |
| Net weight | 260 Kg |
ACCESSORIES
Tool-tray
To keep Your drill-bits and tools tidy and always close at hand
CODE: 26000014
Stand for the long fences
To keep Your fences always close at hand
CODE: 26000010
Ref. stops to match the long panel
It keeps long working panels aligned for a more accurate drilling process
N. 2 ref. stops to match the long panel during transversal drilling
CODE: 26001071
1000 mm long fence extension
To increase by 1 mt the length of the 2 standard fences (1,5 mt each) and carry out the in line drilling process on long panels
CODE: 29970302
Blocks to lift the hold-down clamps up to 130 mm
To process beams having a maximum height of 130 mm
CODE: 26001015
Set of two ref.stops for drilling at 45° and 90°
To drill mouldings and laths
CODE: 26000069 A / 26000069 B
Set of n° 2 additional ref. stops
For an even quicker and more accurate set up
CODE: 26028819
Additional hold-down clamp
To increase the hold-down pressure on the working panel and consequently its stability during the drilling process
N.1 additional hold-down clamp
CODE: 29971019
Ref. pin for line drilling
To carry out the line vertical drilling process very quickly and accurately, without using the long fence. It is highly recommended to have this device both sides of the machine to process panels longer than 2 mt
Ref. pin for line drilling (1 piece)
CODE: 29900100
Additional hold-down clamps
To increase the hold-down pressure on the working panel and consequently its stability during the drilling process. It allows to process two small panels at a time
N.2 additional hold-down clamps
CODE: 29971020
Ref. gauge for reaf fence parallelism
For a quick and accurate set-up of the rear fence
Ref. gauge for reaf fence parallelism ( 500 mm)
CODE: 26000061
Kit to join the two aluminium fences
To get one single 3mt long fence
Kit to join the two aluminium fences (1500 + 1500 mm)
CODE: 26028820
Drilling aggregate for hinges, type “Grass”
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008395
Drilling aggregate for hinges, type “Salice”
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008391
Drilling aggregate for hinges, type “Blum”
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008392
Drilling aggregate for hinges, type “Hettich”
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008393
Tool set made up of 3 drill-bits for hinges
Recommended drill-bit set for drilling aggregate for hinges, made up of n. 2 left-handed drill-bits 8mm diameter and n.1 right-handed drill-bit 35 mm diameter
Tool set made up of 3 drill-bits for hinges
CODE: 26845821
Drilling aggregate for “Cabineo” connectors
To drill the holes for the “Cabineo” connectors in one single working cycle
Drilling aggregate for “Cabineo” connectors, including 3 drill-bits 15 mm diam.
CODE: 26845820
Recommended drill-bit set
A selection of drill-bits by our technicians for a professional approach
CODE: 26054750
Gauge for the symmetry of the side fences
For a quick and accurate adjustment of the two side fences on the working table, to obtain the perfect parallelism of the drilling process
Gauge for the symmetry of the side fences (only for BS 21 PRESTIGE)
CODE: 26200069
Ref. gauge for the quick set-up of the ref. stops along the fence
For the quick and accurate adjustment of the ref. stops along the fence, when carrying out the line drilling process
Ref. gauge for the quick set-up of the ref. stops along the fence (640 mm)
CODE: 26200070
Independent idle-roller table
To make the handling of large-size panels easier for the operator
Independent idle-roller table 500×1500 mm, adjustable height from 770 to 1.175 mm, max. capacity 45 Kg/m. It can be installed both sides of the machine
CODE: 27304100
Quick-change bush / chuck
By using these quick-change tool-holders, You can mount Your drill-bits on the boring head in just “one click”
CODE: 36000061
